PUMA 4100/5100 Series
Horizontal with Milling
OPTIMIZED CUTTING
Unrivaled power and performance.
Heavy duty cutting is a given on the PUMA 4100/5100. That’s because the stable box guideway structure and two-speed gearbox brings the torque.
PUMA 5100XLM
PUMA 5100 Steady Rest

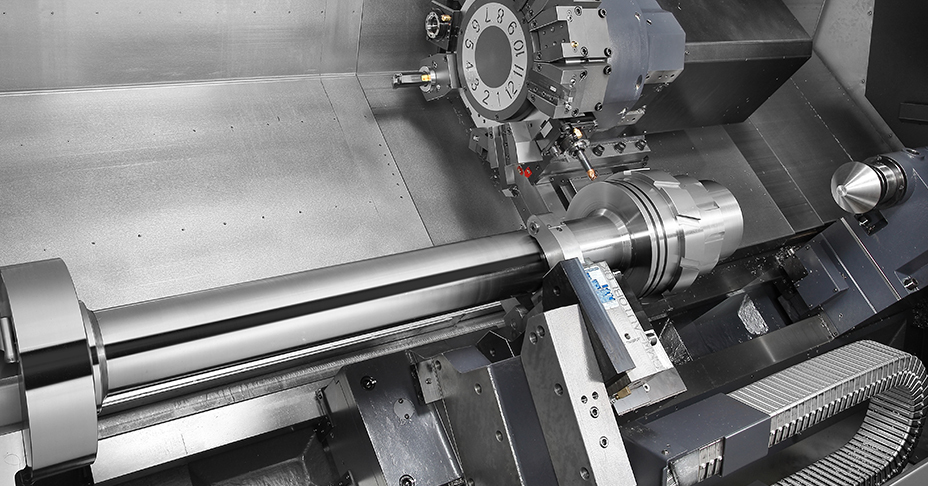

PUMA 5100 for long workpieces
PUMA 4100/5100 Lineup
PUMA 4100MB
CAPACITY
| Main Spindle Std Chuck | 15" |
| Main Spin Max Chuck | 21" |
| Max Turn Length | 38.5" |
| Max Turn Diameter | 22.0" |
| Bar Capacity | 4.6" |
TRAVELS
| Guideway Type | Box way |
| X Axis Rapid Traverse | 630 ipm |
| Z Axis Rapid Traverse | 790 ipm |
| Swing Over Bed | 31.1" |
MAIN SPINDLE
| Main Spindle Power | 50 hp |
| Spindle RPM | 2,000 RPM |
| Spindle Torque | 1,793 ft-lb |
| Spindle Bore | 5.20" |
| Draw Tube ID | 4.62" |
| Spin Axis Contour Torque | 1,188 ft-lb |
TURRET
| Tool Mount Type | BMT-75 |
| Turret Stations | 12 |
| Rotary Tool RPM | 4,000 RPM |
| Rotary tool Motor | 15 hp |
DIMENSIONS
| Machine Height | 86.4" |
| Machine Length | 183" |
| Machine Width | 81" |
| Machine Weight | 22,270 lb |
PUMA 4100LMB
CAPACITY
| Main Spindle Std Chuck | 15" |
| Main Spin Max Chuck | 21" |
| Max Turn Length | 79.8" |
| Max Turn Diameter | 22.0" |
| Bar Capacity | 4.6" |
TRAVELS
| Guideway Type | Box way |
| X Axis Rapid Traverse | 630 ipm |
| Z Axis Rapid Traverse | 790 ipm |
| Swing Over Bed | 31.1" |
MAIN SPINDLE
| Main Spindle Power | 50 hp |
| Spindle RPM | 2,000 RPM |
| Spindle Torque | 1,793 ft-lb |
| Spindle Bore | 5.20" |
| Draw Tube ID | 4.62" |
| Spin Axis Contour Torque | 1,188 ft-lb |
TURRET
| Tool Mount Type | BMT-75 |
| Turret Stations | 12 |
| Rotary Tool RPM | 4,000 RPM |
| Rotary tool Motor | 15 hp |
DIMENSIONS
| Machine Height | 89.5" |
| Machine Length | 227" |
| Machine Width | 90" |
| Machine Weight | 25,460 lb |
PUMA 5100MB
CAPACITY
| Main Spindle Std Chuck | 21" |
| Main Spin Max Chuck | 21" |
| Max Turn Length | 37.48" |
| Max Turn Diameter | 25.6" |
| Bar Capacity | 6.52" |
TRAVELS
| Guideway Type | Box way |
| X Axis Rapid Traverse | 630 ipm |
| Z Axis Rapid Traverse | 790 ipm |
| Swing Over Bed | 35.4" |
MAIN SPINDLE
| Main Spindle Power | 60 hp |
| Spindle RPM | 1,500 RPM |
| Spindle Torque | 2,181 ft-lb |
| Spindle Bore | 7.12" |
| Draw Tube ID | 6.55" |
| Spin Axis Contour Torque | 2,181 ft-lb |
TURRET
| Tool Mount Type | BMT-75 |
| Turret Stations | 12 |
| Rotary Tool RPM | 4,000 RPM |
| Rotary tool Motor | 15 hp |
DIMENSIONS
| Machine Height | 86.4" |
| Machine Length | 187.3" |
| Machine Width | 81" |
| Machine Weight | 23,700 lb |
PUMA 5100LMB
CAPACITY
| Main Spindle Std Chuck | 21" |
| Main Spin Max Chuck | 21" |
| Max Turn Length | 78.8” |
| Max Turn Diameter | 25.6" |
| Bar Capacity | 6.52" |
TRAVELS
| Guideway Type | Box way |
| X Axis Rapid Traverse | 630 ipm |
| Z Axis Rapid Traverse | 790 im |
| Swing Over Bed | 35.4" |
MAIN SPINDLE
| Main Spindle Power | 60 hp |
| Spindle RPM | 1,500 RPM |
| Spindle Torque | 2,181 ft-lb |
| Spindle Bore | 7.12" |
| Draw Tube ID | 6.55" |
| Spin Axis Contour Torque | 2,181 ft-lb |
TURRET
| Tool Mount Type | BMT-75 |
| Turret Stations | 12 |
| Rotary Tool RPM | 4,000 RPM |
| Rotary tool Motor | 15 hp |
DIMENSIONS
| Machine Height | 89.5" |
| Machine Length | 231.5" |
| Machine Width | 90" |
| Machine Weight | 26,900 lb |
PUMA 5100XLMB
CAPACITY
| Main Spindle Std Chuck | 21" |
| Main Spin Max Chuck | 21" |
| Max Turn Length | 119.2" |
| Max Turn Diameter | 25.6" |
| Bar Capacity | 6.52" |
TRAVELS
| Guideway Type | Box way |
| X Axis Rapid Traverse | 630 ipm |
| Z Axis Rapid Traverse | 790 ipm |
| Swing Over Bed | 34.25" |
MAIN SPINDLE
| Main Spindle Power | 60 hp |
| Spindle RPM | 1,500 RPM |
| Spindle Torque | 2,181 ft-lb |
| Spindle Bore | 7.12" |
| Draw Tube ID | 6.55" |
| Spin Axis Contour Torque | 2,181 ft-lb |
TURRET
| Tool Mount Type | BMT-75 |
| Turret Stations | 12 |
| Rotary Tool RPM | 4,000 RPM |
| Rotary tool Motor | 15 hp |
DIMENSIONS
| Machine Height | 91.1" |
| Machine Length | 278" |
| Machine Width | 90" |
| Machine Weight | 29,106 lb |
PUMA 5100LMC
CAPACITY
| Main Spindle Std Chuck | 21" |
| Main Spindle Max Chuck | 24" |
| Max Turn Length | 78.8” |
| Max Turn Diameter | 25.6" |
| Bar Capacity | 10.8" |
TRAVELS
| Guideway Type | Box way |
| X Axis Rapid Traverse | 630 ipm |
| Z Axis Rapid Traverse | 790 ipm |
| Swing Over Bed | 35.4" |
MAIN SPINDLE
| Main Spindle Power | 60 hp |
| Spindle RPM | 1,000 RPM |
| Spindle Torque | 2,410 ft-lb |
| Spindle Bore | 10.82" |
| Spin Axis Contour Torque | 2,181 ft-lb |
TURRET
| Tool Mount Type | BMT-75 |
| Turret Stations | 12 |
| Rotary Tool RPM | 4,000 RPM |
| Rotary tool Motor | 15 hp |
DIMENSIONS
| Machine Height | 89.5" |
| Machine Length | 231.5" |
| Machine Width | 90" |
| Machine Weight | 27,000 lb |
MORE VERSATILITY
Choose from 6 models in the 4100/5100 lineup.
We know this much: If you make medium- to large-size work pieces, you will find a PUMA 4100/5100 that’s right up your alley. Chuck sizes range from 15" to 21" diameter, plus a maximum 60 horsepower spindle that outputs 1,410 ft-lbs of spindle torque. Oh, and a 119.2" turning length and 2-axis to Y-axis configurations.
HELLO, LIVE TOOLING
Expand your machining capability.
When designing the PUMA 4100/5100 with milling, we added a BMT75P turret to the machine. The result: more options for you. Once installed, you will instantly reap the advantages of the 12-station, 4,000 RPM live tooling turret.
