VC Series
Vertical Machining Centers
DOUBLE YOUR OUTPUT
While minimizing operator idle time.
Tailor-made for automotive parts as well as many other applications and industries, the VC Series is a fit for any shop that needs to keep cutting while parts are loading to maximize productivity and spindle utilization. And because it’s a Doosan VMC, you get rigid construction, superior surface finishes and extended tool life.
VC Lineup
| X Axis Travel | 20.5" |
| Y Axis Travel | 12.6" |
| Z Axis Travel | 14.2" |
| X Axis Rapid Traverse | 1,890 ipm |
| Y Axis Rapid Traverse | 1,890 ipm |
| Z Axis Rapid Traverse | 1,890 ipm |
| Cutting Feedrate | 1 - 945 ipm |
| Table Length | 2 x 25.6" |
| Table Width | 2 x 14.8" |
| Maximum Table Capacity | 2 x 441 lb |
| Number of Tools STD | 20 |
| Spindle Taper | CAT40 |
| Spindle Power | 7.4 / 17.4 / 25 hp |
| Spindle RPM | 12,000 RPM |
| Spindle Torque | 25.8 / 63.4 / 70 ft-lb |
| Power Transmission Type | Direct Drive |
| Height | 104.6" |
| Length | 131.1" |
| Width | 74.8" |
| Weight | 11,250 lb |
| X Axis Travel | 22.0" |
| Y Axis Travel | 16.9" |
| Z Axis Travel | 22.4" |
| X Axis Rapid Traverse | 1,575 ipm |
| Y Axis Rapid Traverse | 1,575 ipm |
| Z Axis Rapid Traverse | 1,417 ipm |
| Cutting Feedrate | 1 - 709 ipm |
| Table Length | 2 x 28.0" |
| Table Width | 2 x 19.3" |
| Maximum Table Capacity | 2 x 660 lb |
| Number of Tools STD | 40 |
| Spindle Taper | CAT40 |
| Spindle Power | 20 / 25 hp |
| Spindle RPM | 12,000 RPM |
| Spindle Torque | 123 ft-lb |
| Power Transmission Type | Direct Drive |
| Height | 117.6" |
| Length | 116.5" |
| Width | 93.7" |
| Weight | 17,226 lb |
| X Axis Travel | 30.0" |
| Y Axis Travel | 20.3" |
| Z Axis Travel | 22.4" |
| X Axis Rapid Traverse | 1,575 ipm |
| Y Axis Rapid Traverse | 1,575 ipm |
| Z Axis Rapid Traverse | 1,260 ipm |
| Cutting Feedrate | 1 - 630 ipm |
| Table Length | 2 x 33.8" |
| Table Width | 2 x 22" |
| Maximum Table Capacity | 2 x 770 lb |
| Number of Tools STD | 30 |
| Spindle Taper | CAT40 |
| Spindle Power | 20 / 25 hp |
| Spindle RPM | 10,000 RPM |
| Spindle Torque | 87 ft-lb |
| Power Transmission Type | Belt Driven |
| Height | 123.3" |
| Length | 128.4" |
| Width | 101.6" |
| Weight | 20,283 lb |
BUILT-IN PALLET CHANGER
Never stop cutting.
Nothing changes the game in your shop quite like a servo-driven pallet changer. Add the automatic tool magazine with ample tool storage and you have a machine that’s built for a production environment.
PREMIER PRODUCTIVITY
Best-in-class features.

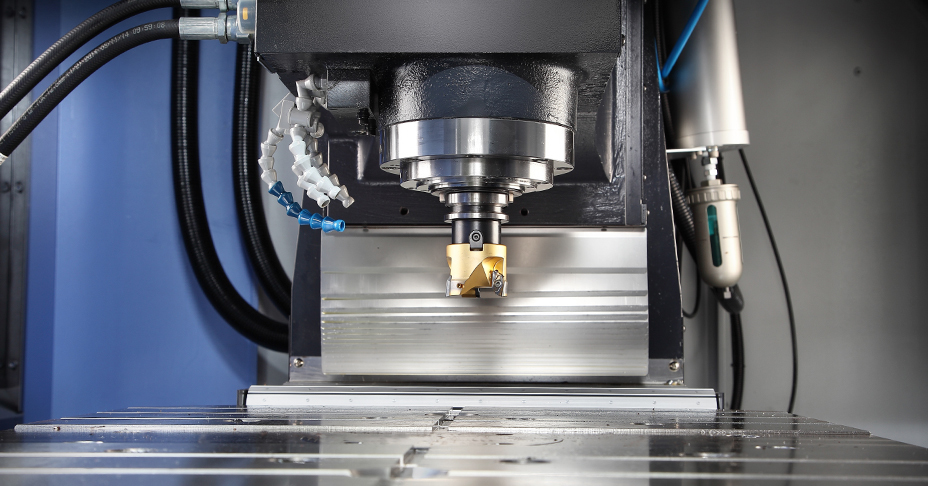

On top of doubling output and minimizing operator time, the VC Series features a BIG-PLUS spindle and roller linear guideways. When speed and reliability are consistent, productivity soon follows.
