Mynx Series
Vertical Machining Centers
MORE MUSCLE
The Mynx and super heavy duty go hand-in-hand.

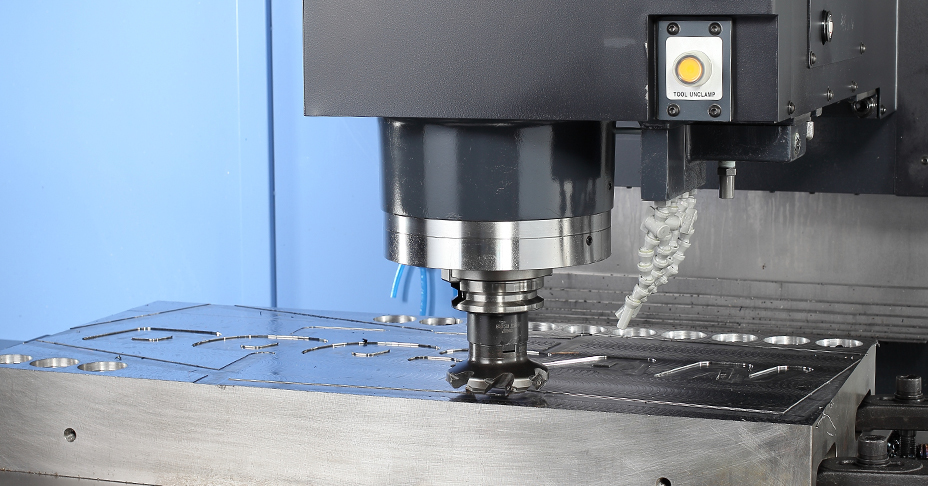

Some things are perfect partners. Peanut butter and chocolate. Beer and pizza. Mynx and heavy duty cutting. This line of vertical machining centers capably handles steel and hardened metals that make lesser machines cry. Get more torque, and a superior surface finish.
Mynx 7500
Mynx 6500
Mynx 5400
Mynx Large Tool Magazine
Mynx Machine Construction
Mynx Lineup
Mynx 5400/40 II
TRAVELS
| X Axis Travel | 40.2" |
| Y Axis Travel | 21.3" |
| Z Axis Travel | 20.9" |
FEED RATES
| X Axis Rapid Traverse | 1,181 ipm |
| Y Axis Rapid Traverse | 1,181 ipm |
| Z Axis Rapid Traverse | 945 ipm |
| Cutting Feedrate | 1 - 470 ipm |
TABLE
| Table Length | 47.2" |
| Table Width | 21.2" |
| Maximum Table Capacity | 1,760 lb |
TOOL CAPACITY
| Number of Tools STD | 30 |
STANDARD SPINDLE
| Spindle Taper | CAT40 |
| Spindle Power | 15 / 20 hp |
| Spindle RPM | 8,000 RPM |
| Spindle Torque | 211 ft-lb |
| Power Transmission Type | Direct Drive |
OPTIONAL HIGH RPM SPINDLE
| Spindle Taper | CAT40 |
| Spindle Power | 21 hp |
| Spindle RPM | 12,000 RPM |
| Spindle Torque | 123 ft-lb |
| Power Transmission Type | Direct Drive |
OPTIONAL HIGH TORQUE SPINDLE
| Spindle Taper | CAT50 |
| Spindle Power | 25 / 30 hp |
| Spindle RPM | 6,000 RPM |
| Spindle Torque | 334 ft-lb |
| Power Transmission Type | Geared Head |
DIMENSION & WEIGHTS
| Height | 108.1" |
| Length | 95.2" |
| Width | 131.9" |
| Weight | 16,534 lb |
Mynx 5400/50 II
TRAVELS
| X Axis Travel | 40.2" |
| Y Axis Travel | 21.3" |
| Z Axis Travel | 20.9" |
FEED RATES
| X Axis Rapid Traverse | 1,181 ipm |
| Y Axis Rapid Traverse | 1,181 ipm |
| Z Axis Rapid Traverse | 945 ipm |
| Cutting Feedrate | 1 - 470 ipm |
TABLE
| Table Length | 47.2" |
| Table Width | 21.2" |
| Maximum Table Capacity | 1,760 lb |
TOOL CAPACITY
| Number of Tools STD | 24 |
SPINDLE
| Spindle Taper | CAT50 |
| Spindle Power | 25 / 30 hp |
| Spindle RPM | 6,000 RPM |
| Spindle Torque | 334 ft-lb |
| Power Transmission Type | Geared Head |
DIMENSION & WEIGHTS
| Height | 114.2" |
| Length | 95.2" |
| Width | 131.9" |
| Weight | 16,534 lb |
Mynx 6500/40 II
TRAVELS
| X Axis Travel | 50.0" |
| Y Axis Travel | 26.4" |
| Z Axis Travel | 24.6" |
FEED RATES
| X Axis Rapid Traverse | 1,181 ipm |
| Y Axis Rapid Traverse | 1,181 ipm |
| Z Axis Rapid Traverse | 945 ipm |
| Cutting Feedrate | 1 - 470 ipm |
TABLE
| Table Length | 55.0" |
| Table Width | 26.4" |
| Maximum Table Capacity | 2,200 lb |
TOOL CAPACITY
| Number of Tools STD | 30 |
STANDARD SPINDLE
| Spindle Taper | CAT40 |
| Spindle Power | 15 / 20 hp |
| Spindle RPM | 8,000 RPM |
| Spindle Torque | 211 ft-lb |
| Power Transmission Type | Direct Drive |
OPTIONAL HIGH RPM SPINDLE
| Spindle Taper | CAT40 |
| Spindle Power | 21 hp |
| Spindle RPM | 12,000 RPM |
| Spindle Torque | 123 ft-lb |
| Power Transmission Type | Direct Drive |
OPTIONAL HIGH TORQUE SPINDLE
| Spindle Taper | CAT50 |
| Spindle Power | 25 / 30 hp |
| Spindle RPM | 6,000 RPM |
| Spindle Torque | 334 ft-lb |
| Power Transmission Type | Geared Head |
DIMENSION & WEIGHTS
| Height | 118.7" |
| Length | 105.3" |
| Width | 131.9" |
| Weight | 19,850 lb |
Mynx 7500/40 II
TRAVELS
| X Axis Travel | 60.0" |
| Y Axis Travel | 30.0" |
| Z Axis Travel | 24.6" |
FEED RATES
| X Axis Rapid Traverse | 1,181 ipm |
| Y Axis Rapid Traverse | 1,181 ipm |
| Z Axis Rapid Traverse | 945 ipm |
| Cutting Feedrate | 1 - 470 ipm |
TABLE
| Table Length | 63.0" |
| Table Width | 29.5" |
| Maximum Table Capacity | 3,300 lb |
TOOL CAPACITY
| Number of Tools STD | 30 |
SPINDLE
| Spindle Taper | CAT40 |
| Spindle Power | 21 hp |
| Spindle RPM | 12,000 RPM |
| Spindle Torque | 123 ft-lb |
| Power Transmission Type | Direct Drive |
DIMENSION & WEIGHTS
| Height | 124.5" |
| Length | 143.3" |
| Width | 153.6" |
| Weight | 34,210 lb |
Mynx 7500/50 II
TRAVELS
| X Axis Travel | 60.0" |
| Y Axis Travel | 30.0" |
| Z Axis Travel | 24.6" |
FEED RATES
| X Axis Rapid Traverse | 1,181 ipm |
| Y Axis Rapid Traverse | 1,181 ipm |
| Z Axis Rapid Traverse | 945 ipm |
| Cutting Feedrate | 1 - 470 ipm |
TABLE
| Table Length | 63.0" |
| Table Width | 29.5" |
| Maximum Table Capacity | 3,300 lb |
TOOL CAPACITY
| Number of Tools STD | 40 |
SPINDLE
| Spindle Taper | CAT50 |
| Spindle Power | 25 / 30 hp |
| Spindle RPM | 6,000 RPM |
| Spindle Torque | 334 ft-lb |
| Power Transmission Type | Geared Head |
DIMENSION & WEIGHTS
| Height | 126.4" |
| Length | 162.7" |
| Width | 153.6" |
| Weight | 34,.210 lb |
Mynx 9500/50
TRAVELS
| X Axis Travel | 98.4" |
| Y Axis Travel | 37.4" |
| Z Axis Travel | 33.5" |
FEED RATES
| X Axis Rapid Traverse | 630 ipm |
| Y Axis Rapid Traverse | 630 ipm |
| Z Axis Rapid Traverse | 630 ipm |
| Cutting Feedrate | .04 - 315 ipm |
TABLE
| Table Length | 98.4" |
| Table Width | 37.4" |
| Maximum Table Capacity | 7,716 lb |
TOOL CAPACITY
| Number of Tools STD | 40 |
SPINDLE
| Spindle Taper | CAT50 |
| Spindle Power | 25 / 30 hp |
| Spindle RPM | 6,000 RPM |
| Spindle Torque | 334 ft-lb |
| Power Transmission Type | Geared Head |
DIMENSION & WEIGHTS
| Height | 141.5" |
| Length | 182.7" |
| Width | 257.9" |
| Weight | 51,000 lb |
BELLS AND WHISTLES
BIG-PLUS. Big X-travel.
A BIG-PLUS spindle taper is standard in all Mynx models, and the X-axis table range starts at 40" and can go all the way up to 98.5".
VARIETY OF TOOL MAGAZINES
Need more tools?
Whether it’s a 24-, 30- or 40-tool capacity, you can easily option your Mynx with the right ATC. Changing large diameter and heavy tools isn’t a problem, either.
