BVM Series
Vertical Machining Centers
FOR THOSE WHO DEMAND MORE
This way to high-end features.
The BVM 5700 has standard features normally found only in exotic machine tools, including a built-in 15,000 r/min spindle, ball nut cooling and smart thermal control.

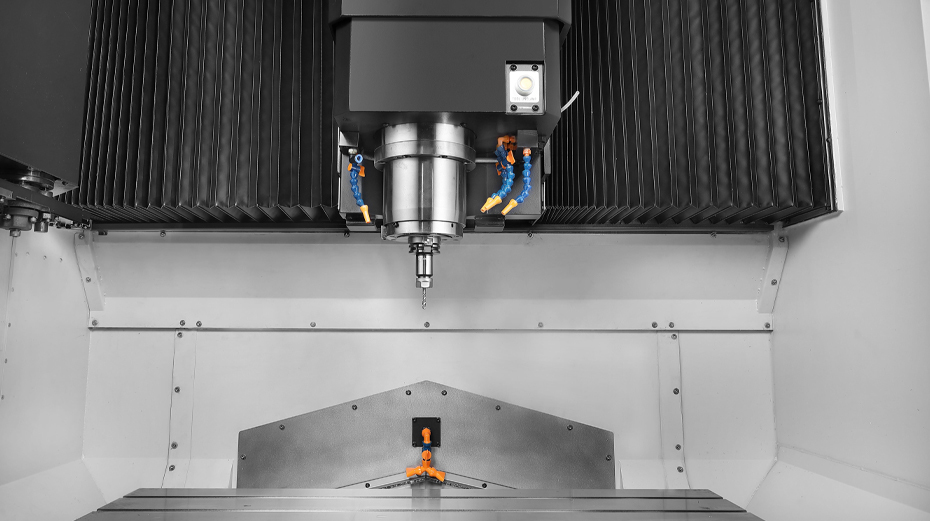

BVM 5700 Work Area
BVM 5700 CNC
BVM 5700 Tool Changer
BVM 5700 Exterior
BVM Lineup
BVM 5700
TRAVELS
| X Axis Travel | 41.33" |
| Y Axis Travel | 22.44" |
| Z Axis Travel | 18.11" |
FEEDRATES
| X Axis Rapid Traverse | 1,653 ipm |
| Y Axis Rapid Traverse | 1,653 ipm |
| Z Axis Rapid Traverse | 1,417 ipm |
| Cutting Feedrate | 0.4 - 708 ipm |
TABLE
| Table Length | 51.18" |
| Table Width | 22.44" |
| Maximum Table Capacity | 2,204 lbs |
TOOL CAPACITY
| Number of Tools STD | 40 |
SPINDLE
| Spindle Taper | CAT40 Big Plus |
| Spindle Power | 20.1 / 49.6 hp |
| Spindle RPM | 15,000 RPM |
| Spindle Torque | 157.9 ft-lb |
| Power Transmission Type | Built-in |
DIMENSION & WEIGHTS
| Height | 113.8" |
| Length | 121.3" |
| Width | 100.8" |
| Weight | 16,534 lb |
SIXTH SENSE
A better way to stay cool.
The smart thermal control in the BVM 5700 has multiple sensors that are strategically placed around the machine to actively compensate for the heat generated by chip making. That’s cool.
RIDICULOUSLY PRODUCTIVE
This thing just refuses to stop working.
We made plenty of optimizations to the accel/decel of the axes drive system, spindle and ATC in the BVM 5700. But the biggest change lies in the bridge type structure. You get the combo of minimized non-cutting time and incredible rigidity.
