HM Series
Horizontal Machining Centers
HARD METALS CUT HERE
6,000 RPM spindle in the HM Series.
The term “heavy duty” is thrown around a lot in this industry. But here at Doosan, it doesn’t get much more heavy duty than the HM series. The gear-driven spindle eats heavier cutting requirements for breakfast, lunch and dinner.
HM Lineup
| X Axis Travel | 82.8" |
| Y Axis Travel | 49.2" |
| Z Axis Travel | 49.2" |
| X Axis Rapid Traverse | 945 ipm |
| Y Axis Rapid Traverse | 945 ipm |
| Z Axis Rapid Traverse | 945 ipm |
| Cutting Feedrate | 1 - 472 ipm |
| Pallet Size (MM) | 39.4" |
| Maximum Table Capacity | 11,023 lb |
| Maximum Workpiece Size | 78.7" x 58" (H) |
| Number of Tools STD | 120 |
| Number of Tools OPT 1 | 90 |
| Number of Tools OPT (Matrix) | 196 |
| Spindle Taper | CAT50 |
| Spindle Power | 60 hp |
| Spindle RPM | 6,000 RPM |
| Spindle Torque | 2,536 ft-lb |
| Power Transmission Type | Geared Head |
| Height | 150.2" |
| Length | 434.5" |
| Width | 229" |
| Weight | 63,950 lb |
| X Axis Travel | 82.8" |
| Y Axis Travel | 59" |
| Z Axis Travel | 59" |
| X Axis Rapid Traverse | 945 ipm |
| Y Axis Rapid Traverse | 945 ipm |
| Z Axis Rapid Traverse | 945 ipm |
| Cutting Feedrate | 1 - 472 ipm |
| Pallet Size (MM) | 49.2" |
| Maximum Table Capacity | 11,023 lb |
| Maximum Workpiece Size | 78.7" x 67.9" (H) |
| Number of Tools STD | 120 |
| Number of Tools OPT 1 | 90 |
| Number of Tools OPT (Matrix) | 196 |
| Spindle Taper | CAT50 |
| Spindle Power | 60 hp |
| Spindle RPM | 6,000 RPM |
| Spindle Torque | 2,536 ft-lb |
| Power Transmission Type | Geared Head |
| Height | 160" |
| Length | 458" |
| Width | 229" |
| Weight | 69,445 lb |
| X Axis Travel | 82.8" |
| Y Axis Travel | 55.1" |
| Z Axis Travel | 55.1" |
| W Axis Travel | 11.8" |
| X Axis Rapid Traverse | 945 ipm |
| Y Axis Rapid Traverse | 945 ipm |
| Z Axis Rapid Traverse | 945 ipm |
| W Axis Rapid Traverse | 236 ipm |
| Cutting Feedrate | 1 - 472 ipm |
| Pallet Size (MM) | 49.2" |
| Maximum Table Capacity | 11,023 lb |
| Maximum Workpiece Size | 78.7" x 67.9" (H) |
| Number of Tools STD | 120 |
| Number of Tools OPT | 90 |
| Number of Tools OPT (Matrix) | 196 |
| Spindle Taper | CAT50 |
| Spindle Power | 60 hp |
| Spindle RPM | 3,000 RPM |
| Spindle Torque | 1,408 ft-lb |
| Power Transmission Type | Geared Head |
| Height | 180" |
| Length | 453" |
| Width | 229" |
| Weight | 72,752 lb |
STAY COOL. KEEP CUTTING.
How the HM Series handles heat buildup.
Machining 101: If heat buildup is not controlled, you can overheat the spindle in a hurry. Thankfully, the HM Series is equipped with spindle cooling that minimizes thermal error during extended heavy cutting. Wear and tear is minimized, and you stay cool as a cucumber.
WANT A W-AXIS?
There’s a model for that.

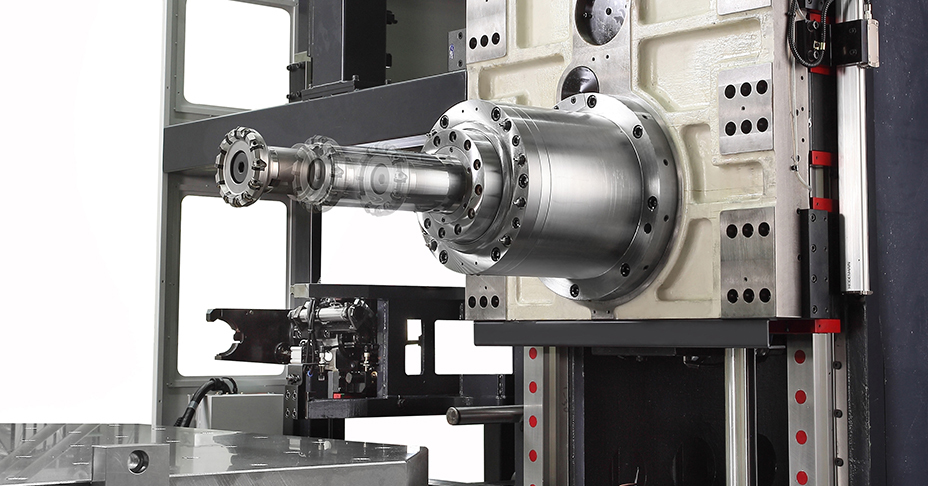

The HM 1250W is equipped with a 110mm diameter, 300mm W-axis extension in the spindle, allowing you to handle any extra boring applications that your workpiece may require. It’s equipped with a dual contact BIG-PLUS taper, meaning rigidity is guaranteed.
